About FME    |   April 26, 2016   |   By Tiana Warner

FME 2016.1 Launch: It’s Awesome.

FME2016-1FME 2016.1 is here! Download now.

Each FME release, we compile a “What’s Great” doc with all the technical details of what’s new. When I had a look at the list this time around, I was amazed. What is great in FME 2016.1? Everything. In fact, I’ll steal a note from the LEGO movie and say everything is AWESOME!

At a glance:

  • Connect to more cloud systems like Dropbox, data analytics packages like Tableau, NoSQL databases like MongoDB, and the latest new formats like Apple Venue Format.
  • Improvements to FME Workbench to help you build cleaner, more streamlined workspaces.
  • Web connections flow seamlessly to FME Server.
  • Dashboards to monitor your FME Server and FME Cloud instances.
  • More control over FME Cloud instances.
  • FME Hub has arrived.

Let’s take a look in more detail.

FME Desktop Interface Upgrades

Ok, we all work with computers, so we’re all a little obsessive-compulsive. Messy connection lines in a workspace are bothersome. We’ve added three ways to fix that:

  1. Make junctions to merge lines at any point along a connection. Right-click and add one, or add a Junction like you would any ordinary transformer.
  2. Hide lines you don’t want to see. Careful with this — don’t go hiding important lines — but this is useful if you have, say, a bunch of connections fanning to a Logger at the opposite end of a huge workspace. Right-click > Create Tunnel > Poof! They’re ghosts now. (Or click “Hide” if you don’t want Junctions at each end.)

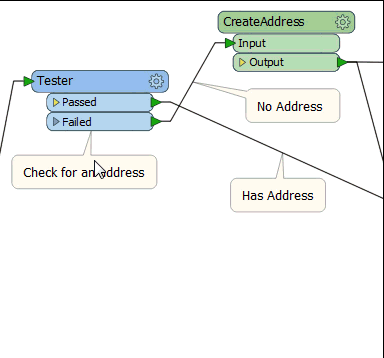

  1. Reorder connection ports by right-clicking them on any transformer and moving them up or down (works for input and output).
ConnectionOrder

Uncross connection lines by moving ports up and down.

On the topic of reordering, you can also control the order in which connection lines and Creator-type transformers are executed. Right-click and choose to ‘set runtime order’, or drag them up and down in the Navigator Pane to set the order they’ll go in when you run your workspace. Big win for workspace transparency, not to mention performance gains.

Next, we added more to the bookmark navigation introduced in FME 2016.0. Now you can jump through your bookmarks using the spacebar, and reorder them as desired in the Navigation Pane.

The FME Data Inspector offers more options for viewing your data, including the ability to choose the drawing style of your geometry (e.g. make points bigger or use an icon), and set the transparency of rasters and background maps.

FME Data Inspector drawing styles FME Data Inspector set transparency on rasters and background maps

Visualize data more easily in the FME Data Inspector.

New Formats

Create, validate, and update Apple Venue Format (AVF) data. AVF is the floorplan format used by Apple Maps Connect, a new indoor wayfinding service in iOS. (Interested? To enable indoor positioning for your venue, apply to Apple Maps Connect, then create floorplans in AVF, then survey your venue using Apple’s Indoor Survey app.)

We also now support Tableau, which is a biggie for a lot of our users. Stay tuned for a blog post detailing FME’s Tableau support.

Tableau data via FME

This data was integrated from various sources and loaded to Tableau via FME.

NoSQL databases dominate the list of new formats in FME 2016.1:

  • MongoDB
  • Elasticsearch
  • GeoCouch
  • IBM Cloudant
  • Microsoft Azure DocumentDB
Kibana on Elasticsearch via FME

This Kibana dashboard is built on top of Elasticsearch data, which was loaded via FME.

In addition, FME now supports Cesium 3D point clouds, Sentinel satellites 1 & 2, Autodesk FBX, and HTML writing.

Sentinel satellites orbit the earth and gather raster imagery of land, ocean, and atmosphere. The ESA has launched three satellite missions so far and expects to launch a total of seven by 2021.

Sentinel satellites orbit the earth and gather raster imagery of land, ocean, and atmosphere. The ESA has launched three satellite missions so far and expects to launch a total of seven by 2021.

New Transformers

While most FME transformers help you manipulate data however you need it, many new transformers in this release focus on getting your data where it needs to go:

  • DropboxConnector
  • SlackConnector
  • Emailer
  • TempPathnameCreator
  • HTMLReportGenerator & HTMLLayouter

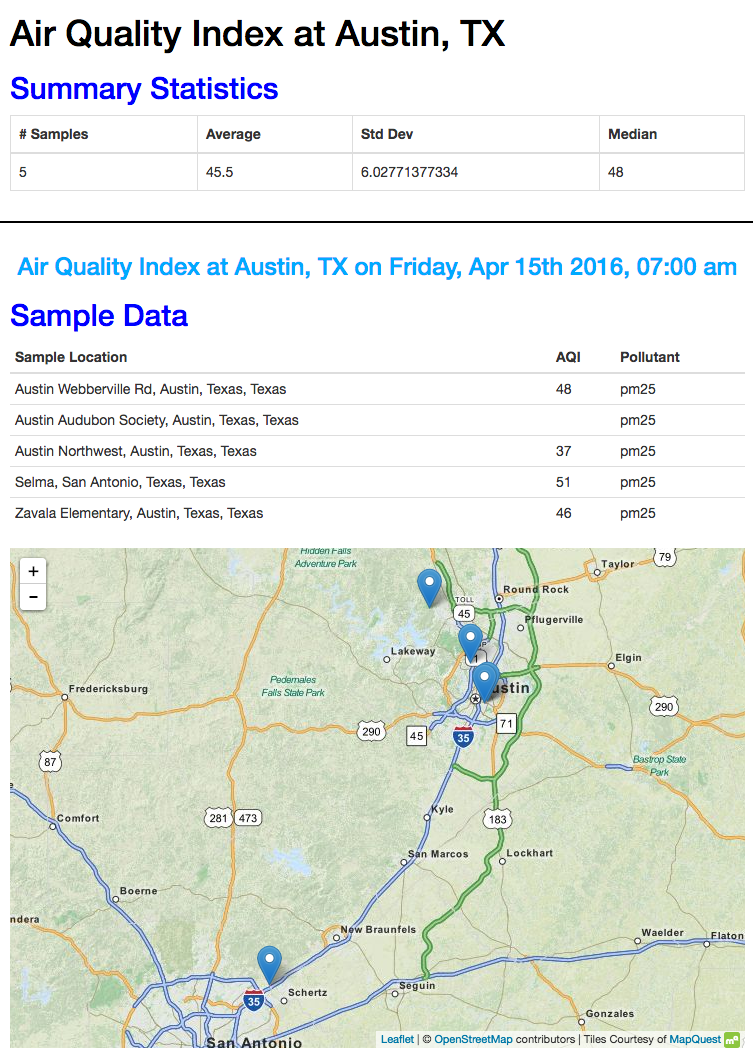

This HTML report brought to you by some JSON source data, the HTMLReportGenerator, HTMLLayouter, and that’s about it!

This HTML report brought to you by some JSON source data, the HTMLReportGenerator, HTMLLayouter, and that’s about it!

Plus, introducing the RCaller.

RCaller transformer parameters. Click to enlarge.

RCaller transformer parameters. Click to enlarge.

R brings a huge library of powerful statistical and geospatial power to FME. Note you do need to install R separately, since R is distributed under a GPL license.

FME Server

The ability to save connection information is a relatively new FME feature, and we’ve improved it this release so you can publish web connections to FME Server.

Publishing saved Gmail and PostGIS connections to FME Server for use in automation workflows.

Publishing saved Gmail and PostGIS connections to FME Server for use in automation workflows.

We’ve added FME Server dashboards to make it easier to monitor your instances. The Dashboard is accessible under the Manage > Administration menu.

FME Server Dashboards

Dashboard showing the total number of jobs run on the FME Server instance.

Complementing the DropboxConnector transformer, we now also have a Dropbox publisher and subscriber.

By the way, in case you missed Don’s blog post a short while back, FME Server can now be deployed on any platform supported by Docker.

FME Cloud

We roll out new FME Cloud features as they happen, so these are not tied to a specific release, but we’ve made recent improvements that are worth mentioning in a blog post about Everything Awesome:

  • Instance scheduling so you can set up your instances to turn on exactly when you need them.
  • Real-time instance monitoring to help you understand your usage patterns to see if you might need to upgrade or downgrade your instance. It can also help with debugging if your instance becomes unresponsive.
FME Cloud real-time instance monitoring gives you insight on memory usage, disk usage, network throughput, response time, server load, and engine count.

FME Cloud real-time instance monitoring gives you insight on memory usage, disk usage, network throughput, response time, server load, and engine count.

  • Custom alerts to keep you in tune with the health of your instances. On the dashboard, you can choose to get notified (via email, Slack, Webhooks, etc.) when something happens, like if CPU or memory gets too high.
  • You no longer need to enter a credit card to try FME Cloud. Just put in your email or phone number so we can verify you are a real person, and you’re good to go.

FME Hub

Also not tied to the release, but it fits the criteria of being Awesome. FME Hub has replaced the FME Store. This is a natural extension of the new FME Knowledge Center, where users can connect with the FME community, share ideas, and browse articles. FME Hub is where our users (and staff!) can share custom transformers, formats, workspace templates, and web connection definitions. It’s easier than before to collaborate, contribute, and search. We want to maintain a standard of high quality content, so users can upload an accompanying test workspace to ensure their contributions keep working with every FME release. The plan is to embed FME Hub into workbench in FME 2017.

Additional Updates

As usual, you can expect improvements and fixes across the board. Some highlights:

  • Extract differences between versions / snapshots of Esri ArcSDE Geodatabases.
  • Many database formats are now cross-platform supported.
  • FME Server cleanup settings.
  • Authentication options for ArcGIS Online formats.
  • GML triangulated surface support.
  • Improved DynamoDB reading/writing settings.
  • Get all the fine details in the technical What’s New doc.

*

Can you believe this is just a .1 release? Awesome, right? We’re excited to see what you do with the new formats, transformers, and functionality.
