Extracting Geospatial Data from PDFs: Top 3 Challenges

You’ve been given a dataset that promises to contain valuable information. It’s got maps, measurements, CAD drawings—everything you need to do a great job! Except (sad trombone sound) the data is in PDFs. PDFs!  What In The Name Of Adobe are you supposed to do with that? Open 500 files and manually punch every number into a calculator? No, thanks.

From accountants to data technicians and beyond, the need to extract data from a PDF has plagued all of us at some point. Software like Adobe is great if you need to edit well-formed text and tables—but if you’ve landed here, you probably need more than that. Let’s look at how to convert a PDF into valid data that you can load into your GIS, CAD system, database, etc., for further use.

Basic PDF Conversion Workflow

1. Add a PDF Reader to your FME workspace to automatically extract data from input PDFs, including:

  • maps
  • rasters / images
  • geometry and other vector data
  • text and tables
  • attribute information and coordinates
  • metadata, like document info and page dimensions

2. Send the data through a combination of FME transformers — because data extraction is one thing, but the whole point is to gain insight from what’s in the PDF. This is where you can perform calculations and measurements on the data, integrate it with other sources, apply regex, and otherwise process it before exporting.

3. Add a Writer to convert your transformed data into a useful format – GIS, CAD, Excel, database, Word, business intelligence software, whatever you need.

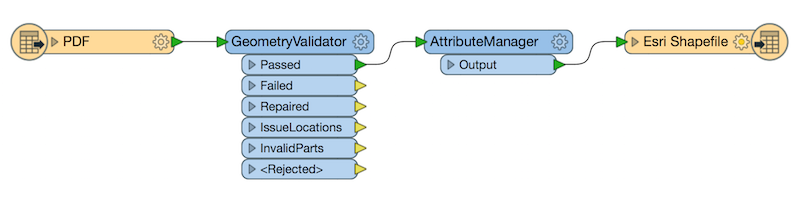

FME Workspace transforming PDF to Esri Shapefile.

Okay, this is all fine and dandy in theory—but extracting information from PDFs is rarely so straightforward. Let’s look at some top challenges and how to overcome them.

[Webinar] Sign up for our webinar on Sept 5 to see live PDF Reading demos

Challenge 1: Scanned PDF documents are not parsable

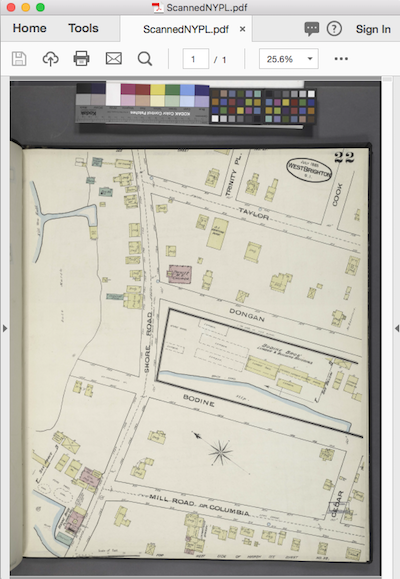

Often, data technicians are given scanned documents that are just pages of rasters – no geometry, no parsable text. Old maps and hand-drawn plans are common culprits.

To create vector objects from a scanned image, you need feature extraction. To parse text from a file like this, you need OCR (“optical character recognition” – the automated process of extracting text from an image).

Useful FME transformers:

  • TesseractCaller – calls a third-party library from within FME that performs OCR.
  • RasterConvolver – performs complex raster operations, like edge detection. This helps extract geometries from ordinary images.
  • RasterExpressionEvaluator – lets you perform pixel-by-pixel calculations on a raster, so can be used to extract features and do other raster operations.
  • PotraceCaller – calls a third-party library to turn bitmaps into vector graphics. See also: 3 Ways to Convert Raster Images to Vector for CAD/GIS.

A Boring Project

Here’s a boring example. I mean, “the act of making a hole” boring, not “Zzzz” boring.

Challenge 2: Bulk processing

Data conversion is usually not a one-time thing. If you have a PDF to process, there’s a good chance you actually have more than one of them. Because FME workflows are repeatable, bulk processing is as easy as feeding your workspace the directory of PDFs—or setting up a schedule or trigger in FME Server and letting the workspace run whenever new data arrives.

You could even create a self-serve web portal via FME Server and let end users perform PDF conversions themselves. (Check out FME Server Demos for self-serve web portal examples.)

A Seal Project

(The fancy stamp kind, not the fish-eating mammal kind or the Navy kind.) On the FME Knowledge Center, @dbaldacchino1 mentioned a scenario where architects and engineers could update geoPDFs on demand and add their company’s seal. This would be a great use of FME Server! If you plan to use FME’s PDF functionality for your company, I’d love to hear about it. Reach out on Live Chat and tell our support team that you have a PDF scenario for Tiana.

Challenge 3: Extracted data needs to be cleaned up

Polygons are broken, lines are disconnected, text is garbled, every letter in the PDF is stored in an individual text box rather than a connected string … Help.

Once you extract data from a PDF, it likely needs a bit of repair. FME has a few transformers that can help you intelligently clean up the data.

Misbehaving text extracted from a PDF.

Useful FME transformers:

  • GeometryValidator – to detect and repair bad geometry.
  • Snapper – to snap broken lines together.
  • AttributeManager – to add and update the attributes associated with a data feature.
  • MapTextLabeller – to annotate the geometry with high-quality cartographic labels.

A Shark Project

Actual sharks. Stay tuned for an upcoming blog by Dmitri, where he uses FME to extract data from a complicated PDF of shark migration patterns, among other examples.

[Webinar] Sign up for our webinar on Sept 5 to see live PDF Reading demos

Do you need to extract data from a PDF? Please let us know what tutorials/templates you need and how we can improve FME’s PDF reading functionality.

Learn more: check out these tutorials on the FME Knowledge Center.
